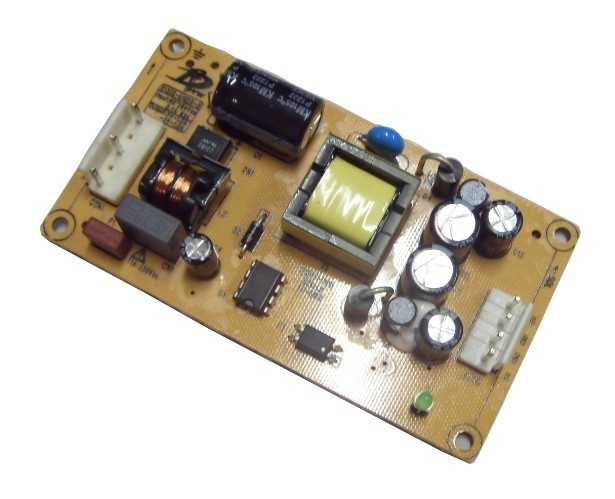

BOU-10D Series
■ Feature
● Universal AC Input: 90~264VAC/100~370VDC
● According with Safety-Standard design
● Small Size,compact construction
● Very wide working temperature (-25℃~
● Protection:Overload/Short/Over voltage
● All capacitor used high working temperature
● 2 year warranty
■SPEC
Model | BOU-10D5-5 | |||
Output | Output Voltage | V1:5V | V2:-5V | |
Rated Current(convention) | 0.1~1.0A | 0.1~1A | ||
Rated Output Power | 10W | |||
Ripple & Noise 0~70℃(2) | <50 mV | <50mV | ||
Output Voltage Tolerence | ±2.0% | ±10% | ||
Setup time | ≤1S (230Vac input, Full load) | |||
Hold up time | ≥25mS(230Vac input, Full load) | |||
Output Inrush | <5.0% | |||
Dynamic | 10%-100%Load:10%Vp-p 10%-50%Load: 5%Vp-p 50%-100%Load: 5%Vp-p | |||
Input | Input Voltage range | 90Vac~264Vac,100~370Vdc | ||
Rated Input Voltage | 100Vac~240Vac / 47Hz~63Hz | |||
Start-up Voltage | 90Vac | |||
Efficient (Type) | 76% | |||
Input Current(Max) | <0.4A | |||
Start-up Inrush Current | <50A@264Vac Cold start |
